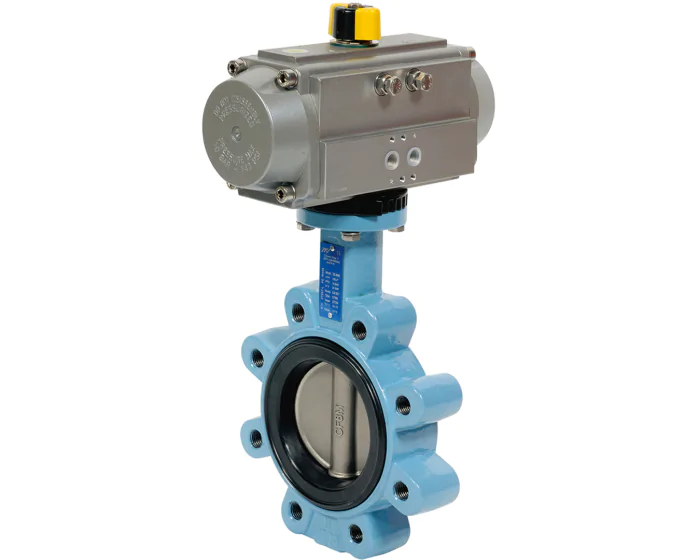

The 1163 butterfly valve has a ductile iron body, 316 stainless steel disc and EPDM seat. It is actuated with ALPHAIR pneumatic actuator. ACS approved. PS: 16 bar (up to DN150) - TS: -10 /+110°C. Mounting between flanges LUG PN10/16.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Adjustable limit screws | Yes |
| DN | DN40 - 1''1/2 |
| Seat | EPDM |
| Body material | Ductile iron |
| ATEX protection mode | EEx c |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Concentric |
| Wafer/lug | Lug |
| ATEX zone | 1.21.2.22 |
| CE | Risk category III |
| Range | TTV |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 Ductile iron Concentric DN40 - 1''1/2 Double acting | 261393017006R | S1002157 |
€250.46
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN40 - 1''1/2 Spring return | 261393017107R | S1002158 |
€286.53
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN50 - 2'' Double acting | 261394017006R | S1002159 |
€252.80
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN50 - 2'' Spring return | 261394017107R | S1002160 |
€288.86
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN65 - 2''1/2 Double acting | 261395017007R | S1002161 |
€282.69
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN65 - 2''1/2 Spring return | 261395017108R | S1002162 |
€361.39
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN80 - 3'' Double acting | 261396017007R | S1002163 |
€301.64
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN80 - 3'' Spring return | 261396017108R | S1002164 |
€380.50
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN100 - 4'' Double acting | 261397017008R | S1002165 |
€374.29
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN100 - 4'' Spring return | 261397017109R | S1002166 |
€462.10
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN125 - 5'' Double acting | 261398017008R | S1002167 |
€414.40
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN125 - 5'' Spring return | 261398017110R | S1002168 |
€574.86
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN150 - 6'' Double acting | 261399017009R | S1002169 |
€509.94
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN150 - 6'' Spring return | 261399017111R | S1002170 |
€761.29
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN200 - 8'' Double acting | 261400017010R | S1002171 |
€821.31
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN200 - 8'' Spring return | 261400017112R | S1002172 |
€1,063.87
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric Double acting DN250 - 10'' | 261401017011R | S1002173 |
€1,203.60
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric Spring return DN250 - 10'' | 261401017113R | S1002174 |
€1,591.20
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric Double acting DN300 - 12'' | 261402017012R | S1002175 |
€1,606.09
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric Spring return DN300 - 12'' | 261402017115R | S1002176 |
€2,827.99
(excl. btw)
|
add to cart |
